發布時間：2020-03-10 14:00:11

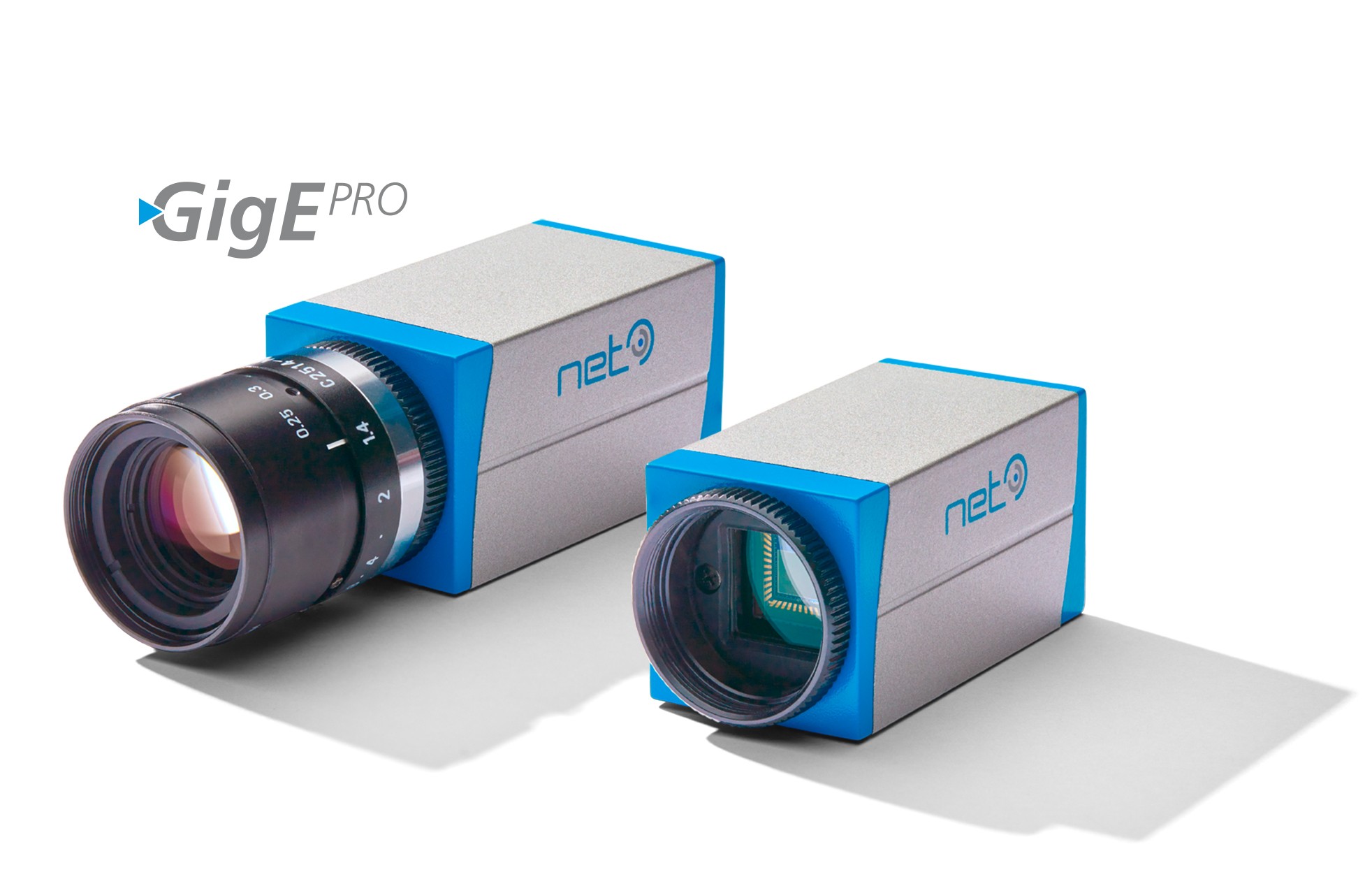

GigEPRO工業相機是實時圖像處理的縮寫，它占用了小型GigE視覺攝像機的空間。通過相機中的處理算法，可以大大減少傳輸?shù)臄?shù)據量。這意味著應用程序?qū)嶋H上不受帶寬限制的影響。與傳統的基于pc的視覺架構相比，Vison解決方案具有以傳感器速度集成圖像處理的主要優勢。有了GigEPRO，已經達到技術或經濟極限的多攝像頭系統現在變成了實實在在的、可擴展的現實。能夠整合他們自己的算法意味著客戶可以自由地將他
GigEPRO工業相機是實時圖像處理的縮寫，它占用了小型GigE視覺攝像機的空間。通過相機中的處理算法，可以大大減少傳輸?shù)臄?shù)據量。這意味著應用程序?qū)嶋H上不受帶寬限制的影響。與傳統的基于pc的視覺架構相比，Vison解決方案具有以傳感器速度集成圖像處理的主要優勢。有了GigEPRO，已經達到技術或經濟極限的多攝像頭系統現在變成了實實在在的、可擴展的現實。
能夠整合他們自己的算法意味著客戶可以自由地將他們信任的視覺知識編程到相機中。這就是網絡開放相機概念背后的理念:相機成為一種獨特的視覺解決方案，呈現出新的競爭優勢。客戶還受益于FPGA的IP核心副本保護。NET庫是由NET專門開發的用于增強和處理圖像的算法集合，它為應用程序提供了優化的圖像結果。集成的圖像處理功能，使相機可以作出自己的決定，并直接控制外圍設備。
GigEPRO 相機型號：
GP1041M工業相機 , GP1041C工業相機，GP4136M 工業相機 ，GP4136IR工業相機， GP4136C工業相機， GP4206M工業相機，
GP4206C 工業相機，GP2239M工業相機,GP2239C工業相機,GP2238M工業相機,GP2238C工業相機, GP2507M工業相機,
GP2507C工業相機,GP1503M工業相機,GP1503C工業相機, GP11004M工業相機,GP11004C工業相機,GP1305C工業相機,
相機型號 | GP1041M GP1041C | GP4136M | GP4136IR | GP4136C | GP4206M GP4206C |
分辨率 (H x V) [px] | 752 x 480 / WVGA | 1280 x 1024 / SXGA | 1600 x 1200 / UXGA | ||
芯片 | CMOS | ||||
芯片尺寸 | 1/3“ | 1/1.8“ | 1/1.8“
| ||
幀速[fps] | 64 | 61 | 52
| ||
快門方式 | global | global, rolling, global reset | global, rolling, global reset
| ||
鏡頭接口 | C- / CS-mount | ||||
掃描系統 | progressive | ||||
觸發 | External, software, timer based, counter based | ||||
頻閃 | Sensor, trigger, software, timer based, counter based | ||||
接口 | Gigabit Ethernet according to GigE Vision standard/1 Gbps | ||||
相機尺寸 | 30 x 30 x 56 mm | ||||
功耗（W） | 2.5 to 4 (hardware specific) | ||||
電源 | PoE or 9-24VDC on AUX connector | ||||
連接器 | 8 pin (9-24 VDC + digital I/O) | ||||
工作溫度 | 0-45℃ | ||||
重量 | 68g | ||||
相機型號 | GP2239M GP2239C | GP2238M GP2238C | GP2507M GP2507C | GP1503M GP1503C | GP11004M GP11004C | GP1305C | |
分辨率 (H x V) [px] | 1920 x 1200 / WUXGA | 2448 x 2048 / QSXGA | 2592 x 1944 / QSXGA | 3840 x 2748 / WQUXGA | 2048 x 1536 / QXGA | ||
芯片 | CMOS | ||||||
芯片尺寸 | 1/1.2“ | 2/3“ | 1/2.5“ | 1/2.3“ | 1/2“ | ||
幀速[fps] | 50 | 38 | 22 | 14 | 7 | 12 | |
快門方式 | global | global | rolling with global reset | rolling with global reset | rolling | ||
鏡頭接口 | C- / CS-mount | ||||||
掃描系統 | progressive | ||||||
觸發 | External, software, timer based, counter based | ||||||
頻閃 | Sensor, trigger, software, timer based, counter based | ||||||
接口 | Gigabit Ethernet according to GigE Vision standard/1 Gbps | ||||||
相機尺寸 | 30 x 30 x 56 mm | ||||||
功耗（W） | 2.5 to 4 (hardware specific) | ||||||
電源 | PoE or 9-24VDC on AUX connector | ||||||
連接器 | 8 pin (9-24 VDC + digital I/O) | ||||||
工作溫度 | 0-45℃ | ||||||
重量 | 68g | ||||||
GigEPRO stands for real-time image processing with the footprint of a compact GigE vision camera. By processing algorithms in the camera, the amount of transferred data can be considerably reduced. This means that applications are virtually unaffected by bandwidth restrictions. Vison solutions featuring camera-integrated image processing at sensor speed offer major advantages in terms of efficiency as opposed to conventional PC-based vision architectures. With GigEPRO, multi-camera systems that have already reached their technological or economic limits are now a tangible – and scalable – reality.
The ability to integrate their own algorithms means that customers are free to program their trusted vision know-how in o the camera themselves. This is the idea behind the NET Open Camera Concept: the camera becomes a unique vision solution presenting new competitive advantages. Customers also benefit from IP core copy protection in the FPGA. The NET library, a collection of algorithms specially developed by NET for the purpose of enhancing and processing images, provides optimized image results for the application. The integrated image processing feature enables the camera to make its own decisions and directly control the peripherals.
GigEPRO offers the Open Camera Concept for unique vision solutions. It allows algorithms to be integrated in o the camera: own IP cores as well as algorithms from the NET library. The flexibility of the NET Open Camera Concept is also reflected in the wide range of possible camera versions, including customized models. This means that GigEPRO can be used as a line scan camera. Functional upgrades are available as optional extras. Users can continue to enjoy all the advantages of a standard interface as GigEPRO is a GigE vision camera that is compliant with the GenICam standard.
Award-winning image processing
GigEPRO comes with the NET library - innovative algorithms, specially developed by NET, that optimize the final image. Examples include: ? more detailed information for evaluating the image upon receipt of the full frame rate of the image sensor with the HDR algorithm. ? reduction of the image output format - and therefore the volume of data - with the scaler algorithm. ? ROI and feature recognition in the camera for more efficient image processing
3D laser triangulation
GigEPRO can master complex, sophisticated tasks such as 3D laser triangulation in the FPGA. Here, NET offers the user support in calibrating the system with GigEPRO. Due to the conversion and reduction of data in the camera by 98%, this application can be solved extremely efficiently and decentrally without experiencing any bandwidth problems. This means that applications with multi-camera systems can be virtually scaled to requirement and can cover extremely wide visual ranges.
Legend: R: rolling / G: global / GR: global reset / RGR: rolling mit global reset / GRGR: global; rolling; global reset
