FLI's Atlas focuser is specifically designed for modern CCD imaging where the digital imaging system is mounted very close to correct focus. The thin designs allow focusing with short-travel optical designs.

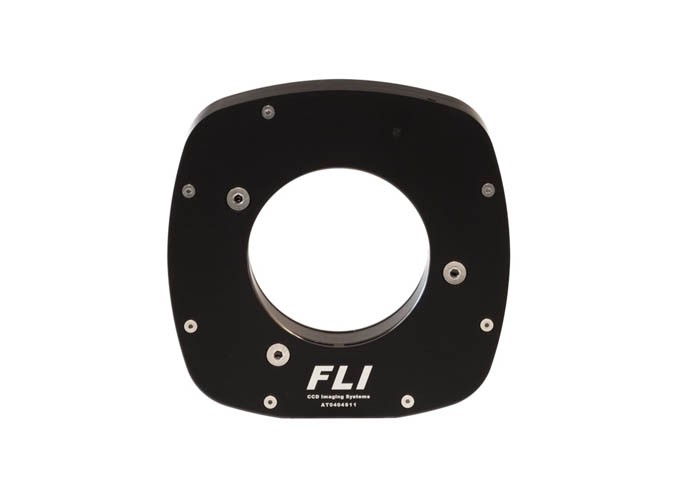

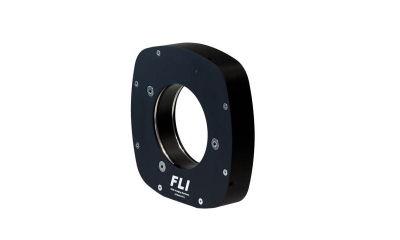

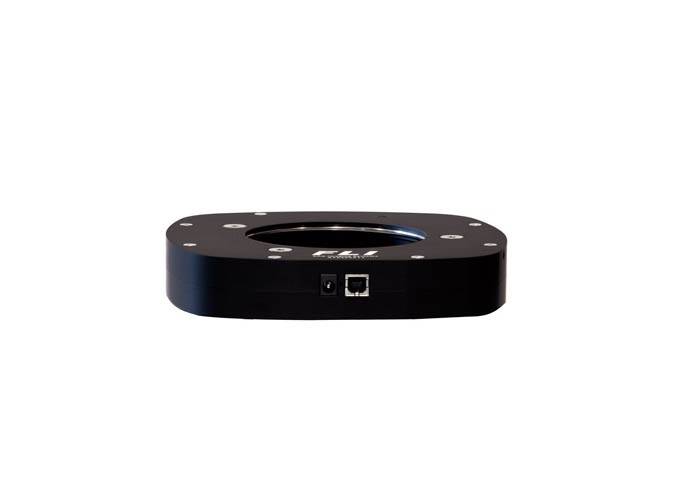

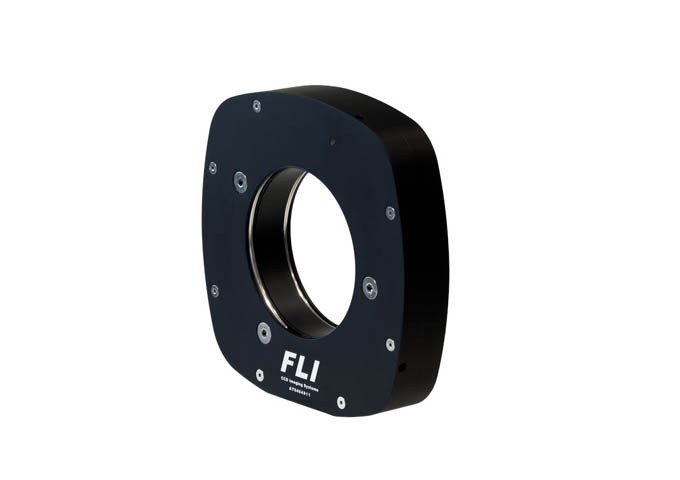

Atlas Large Payload Focuser
Maximum Payload: 25 lbs (11.3 kg)
Payload at 6" Distance: 10 lbs (4.5 kg)
Minimum Travel: 0.35"
Number of Steps: 105,000
Resolution per Step: 85 nm/step
Weight: 3 lbs (1.36 kg)
PC Interface: USB 2.0
Mechanical Interface: Zero-Tilt Adapter
Compatibility: ASCOM Compatible, Auto-Focus Capable
Atlas Repeatability
The production load test setup consists of an Atlas focuser horizontally mounted to a fixed base and loaded with a ProLine camera at the end of a 10" long aluminum tube. As the focuser is moved repeatedly in both directions, it comes back to the same position every time. The displacement is measured by a dial indicator with 0.0001" resolution, a close-up of the dial face is shown for clearer viewing. Small step actuation at the end of the sequence highlights the precision of the instrument.
