日本nac Image Technology公司是全球著名的專業科研級高速攝像機廠商。作為全球率先（1958年）推出高速攝像機的公司，其產品已遍布世界各地，包含大學、科研機構、 汽車工業等單位。

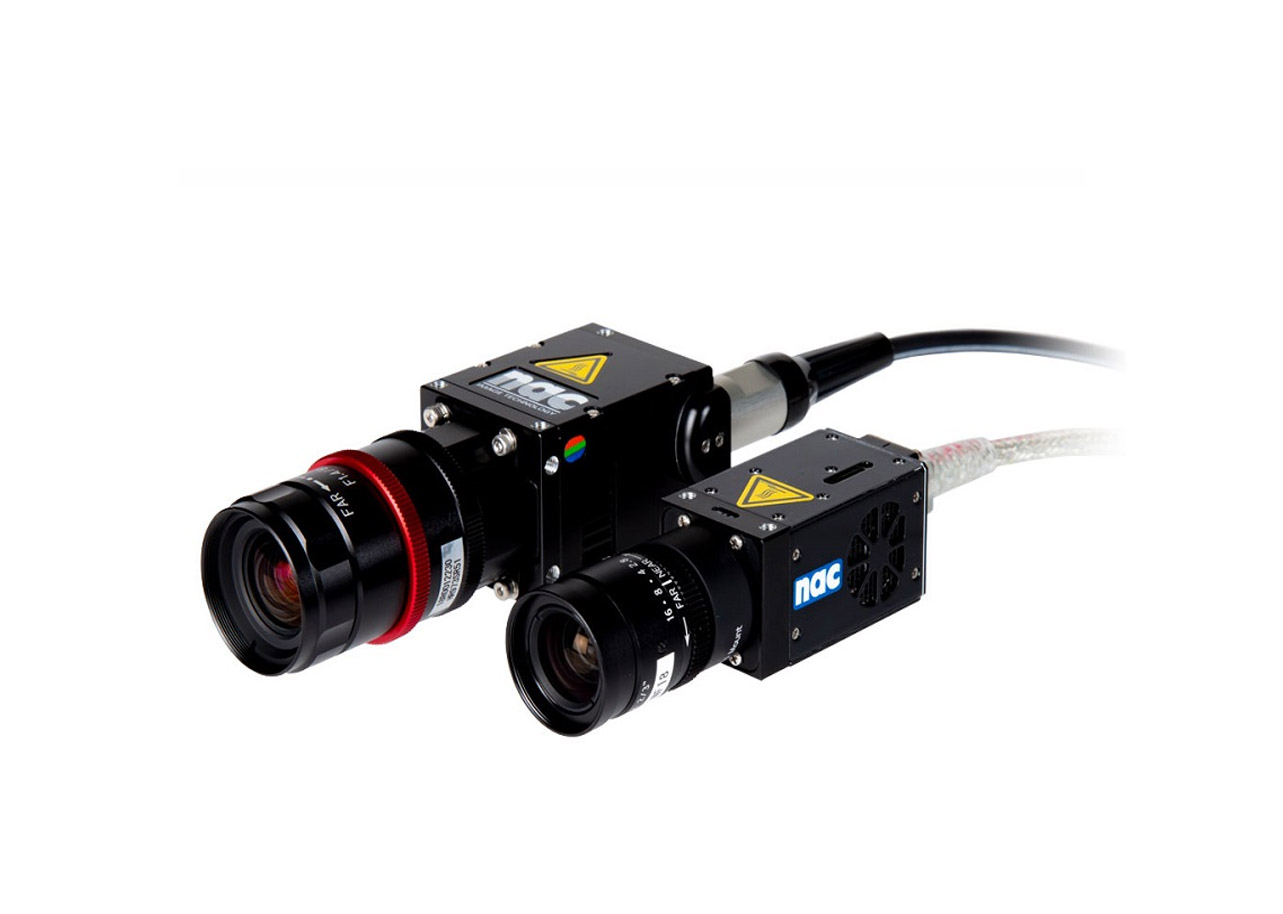

nac MEMRECAM MX是一款強大的、用于車載和車載多攝像頭測試和乘員安全應用的交鑰匙解決方案。每個系統支持多達8個緊密同步的相機視圖，并與所有當前和遺留的MEMRECAM成像系統無縫集成。
MX系列采用了極具光敏性的圖像傳感器，為每個攝像頭提供了高達8GB的完整圖像，內存和內置的內存?zhèn)浞荼Ｗo(hù)?？刂茊卧獮槎噙_(dá)8個M-Cam提供電源、通信、觸發和同步，并提供與所有MEMRECAM平臺集成的互連技術。所有組件緊湊，重量輕，堅固耐用。
多功能MEMRECAM MX高速攝像系統是所有汽車測試需求的真正理想的解決方案。
廣州市元奧儀器作為NAC公司的中國區域核心授權代理商，熱情為各位客戶提供產品的演示與高速攝像機報價。
產品規格：

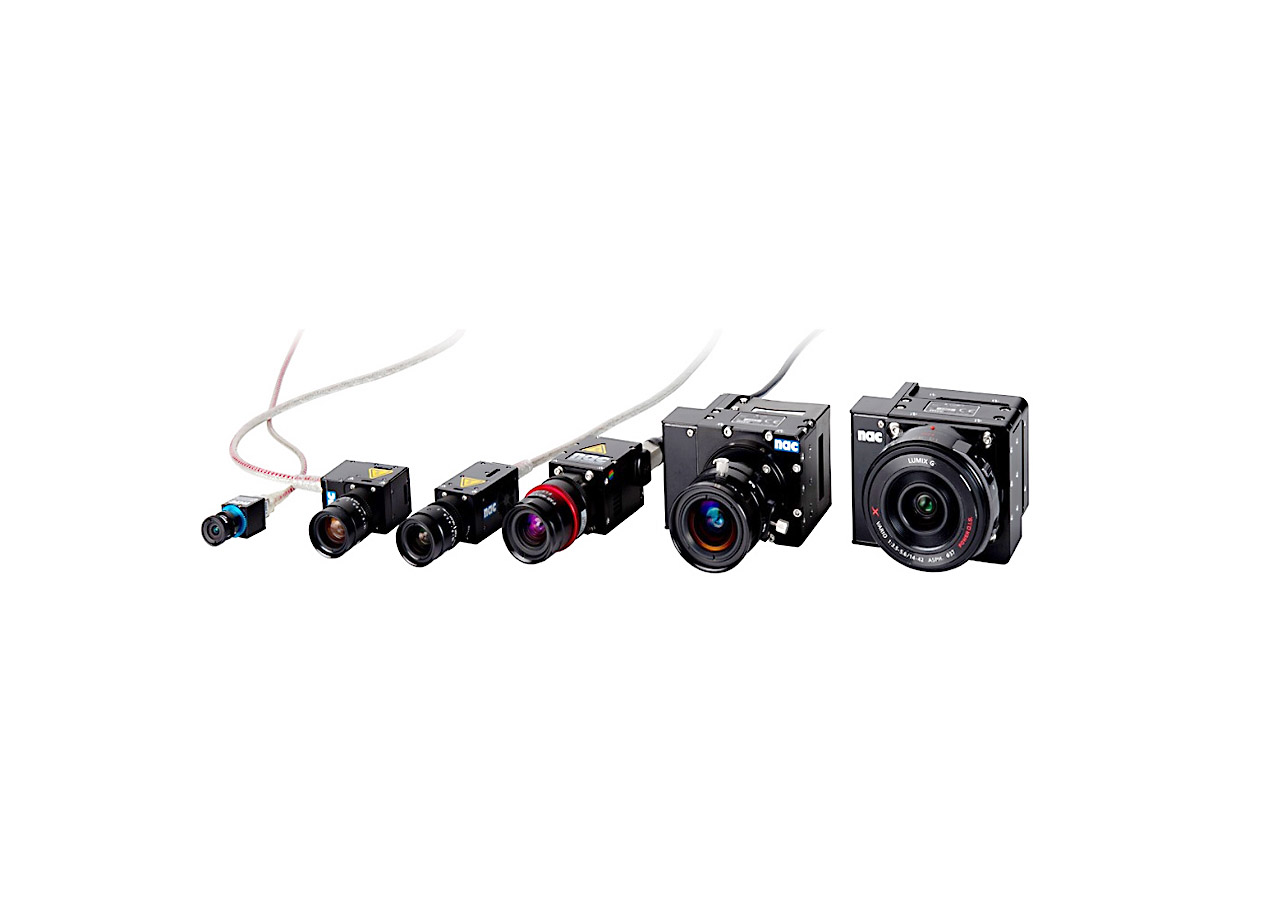

5 Different Camera Head Options Freely Configurable for Different Applications
Full HD @ 2,000FPS (M-Cam/M-CamMFT)
Ultra-Small, Lightweight Camera Head Options
-25x25x45mm, 60g (M3-Cam)
-15x16x16mm, 15g (μ-Cam)Phenomenal Light Sensitivity
Lens Mount Options: C-Mount and MFT-Mount (M-Cam/M-CamMFT)
"On Board", Hi-G Camera Head Options
"Off Board", Ruggedized Camera Head with Remote Control
Ultra-Small, Lightweight Camera Heads
Reliable Thin Cable 7mm (OD) up to 80m Long
Built-in Memory Backup
Electronic Shutter

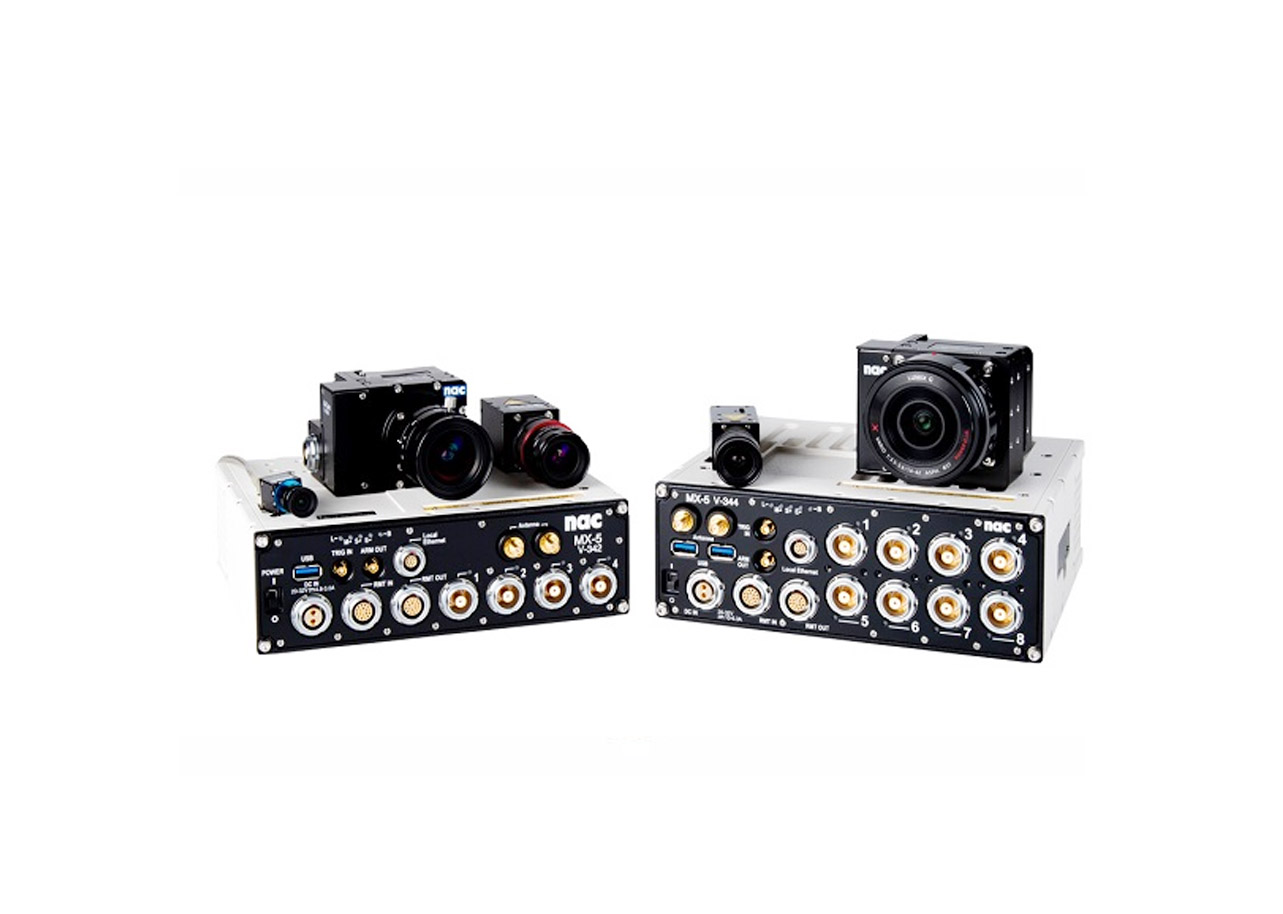

Hi-G Compact Control Unit (4 or 8 Camera Ports)
Multiple Camera Operation with Precise Synchronization
Camera Control, Viewing and Setup via PC or Tablet (Wired/Wireless LAN)
MEMRECAM MX System is Backward Compatible with all MEMRECAM Platforms
Cameras can be Triggered by Shock Using Built-in G-Sensor
注：產品信息若有變更恕不另行通知
產品性能參數：
| MX-Series Camera Heads | |||||
|---|---|---|---|---|---|
| M-Cam | M-CamMFT | M2-Cam | M3-Cam | μ-Cam | |
| Resolution | 1920 x 1080 @ 2,000 fps 1920 x 512 @ 5,000 fps | 1920 x 1080 @ 2,000 fps 1920 x 512 @ 5,000 fps | 1280 x 1024 @ 1,000 fps 640 x 480 @ 4,000 fps | 1280 x 1024 @1,000fps 640 x 480 @4,000fps | 640 x 456 @500fps 640 x 210 @1,000fps 640 x 416 @1,000fps* |
| Light Sensitivity | ISO 8,000 (Color) ISO 32,000 (Mono) | ISO 8,000 (Color) ISO 32,000 (Mono) | ISO 2,000 (Color) ISO 10,000 (Mono) | ISO 2,000 (Color) ISO 10,000 (Mono) | ISO 2,000 (Color) ISO8,000 (Mono) |
| Memory | 4GB/8GB (can be segmented up to 16 times) | 8GB (can be segmented up to 16 times) | 4GB (can be segmented up to 16 times) | 4GB (can be segmented up to 16 times) | 4GB (can be segmented up to 16 times) |
| Bit Depth | 8bit / 10bit | 8bit / 10bit | 8bit / 10bit / 12bit | 8bit / 10bit | 8bit / 10bit |
| Lens Mount | C-Mount | MFT-Mount (Micro Four Thirds) | C-Mount | NF-Mount | M10.5 Special Mount |
| Dimensions | W75 x H55 x D55mm | W80 x H66 x D55mm | W33 x H33 x D45mm | W39 x H25 x D29mm (Angle) W25 x H25 x D45mm (Straight) W33 x H33 x D110mm (Adapter) | W16 x H16 x D27mm (Angle) W15 x H16 x D16mm (Straight) W33 x H33 x D110mm (μ-MX ADAPTER) |
| Weight | 470g | 550g | 100g | 60g (Camera Head) 200g (Adapter) | 15g (Camera Head) 200g (μ-MX ADAPTER) |
| Camera Cable | OD 6.9mm; Length 5m/10m/20m; Max. 80m with MXBB and ext. cable | OD 6.9mm; Length 5m/10m/20m; Max. 80m with MXBB and ext. cable | OD 6.9mm; Length 0.6m/5m; Max. 80m with MXBB and ext. cable | OD 5mm; Length 3m (b/w M3-Cam & M3-Cam Adapter); OD 6.9mm; Length 5m/10m/20m (b/w M3-Cam Adapter & MX-5) Max. 80m with MXBB and ext. cable | OD 3.7mm; Length 2m (b/w μ-Cam & μ-MX Adapter); OD 6.9mm; Length 5m/10m/20m (b/w μ-MX Adapter & MX-5) Max. 80m with MXBB and ext. cable |
| Data Security | Autostorage - 64GB SSD; plus Memory Back-up (60 min.) | Autostorage - 64GB SSD; plus Memory Back-up (60 min.) | Autostorage - 64GB SSD; plus Memory Back-up (20 min.) | Autostorage - 64GB SSD; plus Memory Back-up (60 min.) | Autostorage - 64GB SSD; plus Memory Back-up (60 min.) |
| Impact Resistance | 150 G (6 axis) Half Sign 11ms 200 G (6 axis) Half Sign 7ms | 50G (6 axis) Half Sign 11ms | 150 G (6 axis) Half Sign 11ms 200 G (6 axis) Half Sign 7ms | 150G (6 axis) Half Sign 11ms 200G (6 axis) Half Sign 7ms | 150G (6 axis) Half Sign 11ms |
| Use | On Board and Off Board | Off Board Only | On Board and Off Board | On Board and Off Board | On Board and Off Board |
* Advanced sampling mode
* MXBB – Bespoke product and so, contact your reps to confirm if it is deliverable into your region (the industry standard might not be certified)
應用范圍：
生物醫學領域：高分辨率高速顯微鏡成像; 細胞高速成像；生物力學；生物運動分析；動物仿真學；動物動作分析；人體步態分析；昆蟲或鳥類翅膀運動；康復物理治療；細胞、瓣膜運動、出血觀察；吞咽、呼吸道鞭毛運動
汽車測試領域：安全氣囊分析；機器人動作分析；擺臂分析；撞擊試驗；結構分析；防護裝置性能測試；氣缸噴流
體育運動領域：仿真設備測試；運動動作姿態分析；沖線瞬間拍攝；羽毛球，網球，田徑運動，兵乓球動作姿態分析；高爾夫動作；體育運動輔助訓練
影視制作領域：3D動畫制作；廣告攝影；電視電影；動畫特效；
能源化工領域：氣相流，PIV粒子測速系統；化學結晶過程；噴流，噴霧流體分析，燃燒過程；火焰分析；微通道流；
其他專業領域：跌落試驗；振動分析；沖擊分析；焊接；繞線；切削；壓膜成型;印刷分析；瓶蓋測試；煙草機械；運轉動作分析或故障診斷，產品研發測試、力學彈性分析，放電分析等
高速粒子成像測速； 瞬間物理現象；高速碰撞研究；顯微高速成像；汽車碰撞測試；材料測試；張力測試；顯微鏡學；氣囊膨脹實驗；快速流體觀測；噴霧成像分析；流體力學；燃料注入；電閘放電；燃燒過程分析;半導體質量控制;自然界和醫學上的快速成像研究;超慢動作電影剪切；高速生物學現象觀測（肌肉收縮）；交通控制等等
注：產品信息若有變更恕不另行通知
