Bobcat-320 InGaAs制冷型短波紅外相機

發布時間：2021-03-30 23:56:45

Xenics是一家世界領先的紅外成像儀和高速紅外相機供應商，產品覆蓋可見光, 近紅外,短波,中波 , 長波。Xenics公司在紅外探測器等相關技術領域中有強大的知識背景，致力于研發和銷售各種紅外相機、核心處理器等產品。公司通過不斷的開發創新獲得了長遠的發展方向，以市場和應用領域為導向，具有高度的靈活性，方便客戶在不同應用領域做集成，幫助客戶尋求最優的解決方案，提供完整的紅外相機和探

Xenics是一家世界領先的紅外成像儀和高速紅外相機供應商，產品覆蓋可見光, 近紅外,短波,中波 , 長波。

Xenics公司在紅外探測器等相關技術領域中有強大的知識背景，致力于研發和銷售各種紅外相機、核心處理器等產品。公司通過不斷的開發創新獲得了長遠的發展方向，以市場和應用領域為導向，具有高度的靈活性，方便客戶在不同應用領域做集成，幫助客戶尋求最優的解決方案，提供完整的紅外相機和探測器解決方案，產品適用于短波紅外 ( SWIR ) 、中波紅外 ( MWIR ) 和長波紅外 (LWIR ) 等領域。

憑借最優的圖像質量，相機可應用于半導體缺陷檢測, 微光成像,顯微鏡光譜學等領域. 研究和開發、工業自動化、機器視覺、過程控制和高端安保等領域。元奧儀器是Xenics在中國區的授權代理商，負責Xenics產品在中國市場的推廣、銷售、技術支持等工作，為客戶提供性價比高的產品。歡迎您來電咨詢 !

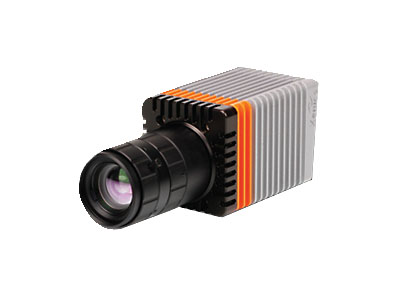

Bobcat-320是一種小型，高性能的短波紅外相機。其熱電冷卻器確保出色的低噪聲和低暗電流的特性。

Bobcat-320針對成本敏感的批量市場，如激光束分析應用，分類及循環再造產業和硅半導體材料內部缺陷檢測。該系列短波紅外相機配有Camera Link和 GigE Vision接口，具有重量輕，功耗低，體積小等特點。 Bobcat-320短波紅外相機，可配合標準C-Mount鏡頭使用，使得這款紅外相機適用于各種工業應用。

特性：

高靈敏度，低NETD探測器 ; 提供2個版本可供選擇 ;靈活，易于使用 ; 以太網接口標準 易于集成，能快速面向市場；

Small, high performance InGaAs camera

The Bobcat 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.

The Bobcat 320 cameras are offered with frame rates of either 100 Hz or 400 Hz. The camera comes with a CameraLink or GigE Vision interface and features low weight and power.

The Bobcat 320 targets cost sensitive volume markets such as laser beam analysis applications, sorting & recycling industry and investigation of defects inside silicon semiconductor material.

Benefits & Features

? Flexible and easy-to-use
? CameraLink or GigE Vision interfacing options
? Low dark current
? Small SWIR areascan camera

注：產品信息若有變更恕不另行通知 / 比利時Xenics公司中國指定代理商---元奧儀器

	Bobcat 320 CL 100 / 400	Bobcat 320 GigE 100 / 400
Approximate dimensions - excluding lens [width x height x length] [mm]	55 x 55 x 72	55 x 55 x 82
Weight [gr] - excluding lens	285	334
Optical interface	C-mount or M42	C-mount or M42
Connector GigE	-	RJ-45
Connector CameraLink	Standard SDR	-
Connector power	Hirose HR10-7R-SA[73]	Hirose HR10-7R-SA[73]
Connector trigger	SMA	SMA

	Bobcat 320 CL 100 / 400	Bobcat 320 GigE 100 / 400
Operating case temperature [°C]	From -40 to +70	From -40 to +70
Storage temperature [°C]	From -45 to +85	From -45 to +85
Power consumption [W]	2.8 [no TE cooler]	4 [no TE cooler]
Power supply voltage	DC 12 V	DC 12 V
Shock	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]	IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms]
Vibration	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]	Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz]
IP rating	IP40	IP40
Regulatory compliance	CE, RoHS	CE, RoHS

Electro-Optical Specifications+

	Bobcat 320 CL 100 / 400	Bobcat 320 GigE 100 / 400
Image format [pixels]	320 x 256	320 x 256
Pixel pitch [μm]	20	20
Detector type	InGaAs photodiode array with CTIA ROIC	InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization	TE cooler	TE cooler
Integration type	Snapshot - global shutter	Snapshot - global shutter
Active area and diagonal [mm]	6.4 x 5.12 [diagonal 8.2]	6.4 x 5.12 [diagonal 8.2]
Optical fill factor	100%	100%
Spectral range [nm]	900 - 1700	900 - 1700
Quantum efficiency	~80% [typical peak value]	~80% [typical peak value]
Gain modes	Single Gain	Single Gain
Full well capacities [electrons]	70k	70k
Read noise [electrons]	110	110
Dark current [electrons/second]	<100k [at 288K sensor temp and 150 mV reverse bias]	<100k [at 288K sensor temp and 150 mV reverse bias]
Read out mode	ITR	ITR
Pixel operability	>99%	>99%
Preconfigured exposure time range [ms]	0.5 to 10 for 100 Hz; 0.01 to 40 for 400 Hz	0.5 to 10 for 100 Hz; 0.01 to 40 for 400 Hz
Max frame rate [Hz] [full frame]	100 or 400	100 or 400
Region of interest	Yes [only for 400 Hz model]	Yes [only for 400 Hz model]
Min region size [pixels]	32 x 4 [step 4 x 1] [only for 400 Hz model]	32 x 4 [step 4 x 1] [only for 400 Hz model]
Max frame rate [Hz] [min region size]	>10000 [only for 400 Hz model]	>10000 [only for 400 Hz model]
Analog-to-Digital [ADC] [bits]	14	14
Command and control	CameraLink	GigE Vision
Digital output format	CameraLink [16 bit]	GigE Vision [16 bit]
Trigger	In or out via SMA or in via CL-CC1 [Configurable]	In or out via SMA [Configurable]

應用領域：

食品檢測 ;
激光束分析 ;
質量控制 ;
半導體檢測 ;
物體熱成像;
垃圾分類;
