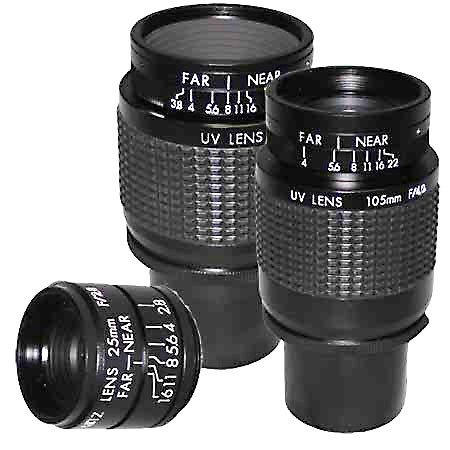

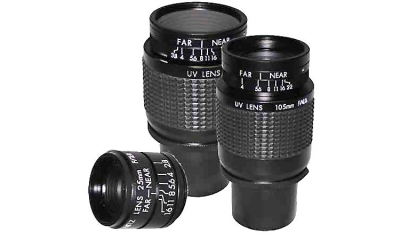

元奧儀器提供各種規(guī)格的紫外成像鏡頭， 可供選購：焦距分別是25mm ,50.53mm,77.5mm,和105mm
型號 | Focal Length 焦距 | Aperture Ratio 光圈大小 | Image Circle 圖像 | Angle of View at Infinity 視野角度 | Optical Distortion 光學(xué)畸變 | Filter Thread 濾光片接圈 | Mount 光學(xué)接口 |
UV42528C | 25mm | 2.8-16 | 16mm | 29°7'x22°2'x37°2' | -4.05% | M=25.5,P=0.5 | C-Mount |
UV55035C | 50.53mm | 3.5-16 | 18mm | 20.3° | -0.76% | M=55.0,P=0.75 | C/T-Mount |
UV57838C-1 | 77.5mm | 3.8-16 | 18mm | 9°45'x7°09'x11°8' | -0.27% | M=49,P=0.75 | C/T-Mount |
UV510540C | 105mm | 4.0-22 | 18mm | 6°98'x5°24'x8°83' | -0.11% | M=49,P=0.75 | C/T-Mount |
